BU-Lok Valves & Fitting India Pvt Ltd is a prominent manufacturer, exporter, and supplier of top-quality forged threaded pipe fittings, meticulously crafted in compliance with ASME B16.11 standards. Our extensive inventory includes a wide range of forged threaded pipe fittings, readily available in all major stainless steel grades such as ASTM A182 F316L, F304L, as well as ASTM A105.
Dedicated to meeting the evolving needs of our esteemed customers, we continuously expand our diverse product portfolio to provide comprehensive solutions.
Moreover, we possess the capability to custom manufacture and supply fittings tailored to your specific requirements, offering a wide array of stainless steel and special alloy grades to suit your unique needs.
At BU-Lok Valves & Fitting India Pvt Ltd, we take pride in our commitment to quality and customer satisfaction. Our forged threaded pipe fittings are meticulously engineered to meet the highest industry standards, ensuring reliability and performance in various applications.

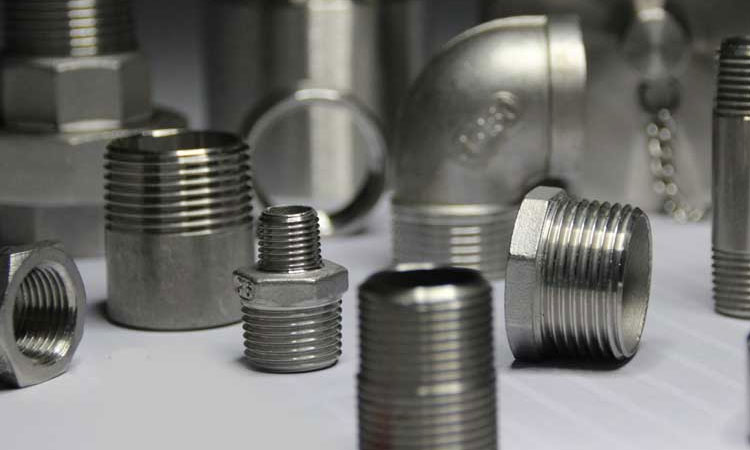

Threaded pipe fittings are a type of pipe connection component that is designed to allow for the assembly and disassembly of pipes and other equipment in a threaded piping system. These fittings have threaded ends, which enable them to be screwed onto the threaded ends of pipes or other fittings without the need for welding or soldering. Threaded fittings are commonly used in low-pressure piping systems and are known for their ease of installation and versatility.
Threaded pipe fittings are used to establish secure connections between pipes and other components in a piping system without the need for welding or soldering.
They are easy to install using basic hand tools, making them suitable for applications that require quick assembly and disassembly.
Threaded fittings come in various types (elbows, tees, couplings, etc.) and materials, allowing them to adapt to different configurations and meet specific needs.
They are commonly used in low to moderate-pressure systems for handling fluids, gases, and compressed air effectively.
Threaded fittings are chosen for applications where pipes and equipment need to be readily accessible for inspection, repair, or modification.
These fittings can be made from materials like stainless steel or brass, offering resistance to corrosion in various environments.
|
Pressure Class |
3000LBS, 6000LBS, 9000LBS |
|
Products |
Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
|
Dimension Specifications |
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|
Size |
1/8″~4″ (DN6~DN100) |
|
ASTM A182 – ASME SA182 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|
ASME B16.9 |
Factory-Made Wrought Buttwelding Fittings |
|
ASME B16.11 |
Forged Fittings, Socket – Welding and Threaded |
|
MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
|
MSS SP-95 |
Swage(d) Nipples and Bull Plugs |
|
BS3799 |
Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
Stainless Steel Grades: ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Material Compliance: The material for forged stainless steel fittings conforms to ASME A182.
Dimension Compliance: The dimensions for forged stainless steel fittings conform to ASME B16.11.
Carbon Steel Grades: ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Material Compliance: The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105.
Dimension Compliance: The dimensions for forged carbon steel fittings conform to ASME B16.11.
Products are meticulously packaged to ensure safe transit. For exports, standard export packaging is employed, typically using wooden cases. All forged fittings bear markings indicating Grade, Lot No, Size, Degree, and our trademark. Custom marking can also be accommodated upon special requests.
Quality Assurance
At BU-Lok Valves & Fitting India Pvt Ltd, stringent quality control measures are in place throughout the production process. This includes thorough inspection, from the procurement of starting materials to the dispatch of finished products. Visual examinations are conducted to verify conformity to recognized industry standards such as ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Additionally, certified Inspection Agencies can be engaged upon request to witness material reports, dimensions, and quality conformity of products.
In conclusion, BU-Lok Valves & Fitting India Pvt Ltd is your trusted partner for high-quality forged fittings and valves. With a commitment to excellence and a dedication to meeting stringent industry standards, we offer a wide range of products that cater to diverse industrial needs.
Our extensive catalog includes a variety of forged fittings, including high-pressure socket weld stainless steel fittings and carbon steel fittings, all designed to meet ASME A182 and ASME B16.11 standards. We take pride in ensuring the utmost quality and conformity in our materials and dimensions, giving you peace of mind when it comes to the reliability and performance of our products.
At BU-Lok Valves & Fitting India Pvt Ltd, we prioritize your satisfaction and safety. Our rigorous quality assurance practices guarantee that every product leaving our facility meets the highest standards. Whether it's custom markings, specialized packaging, or adherence to specific material grades, we are here to accommodate your unique requirements.
