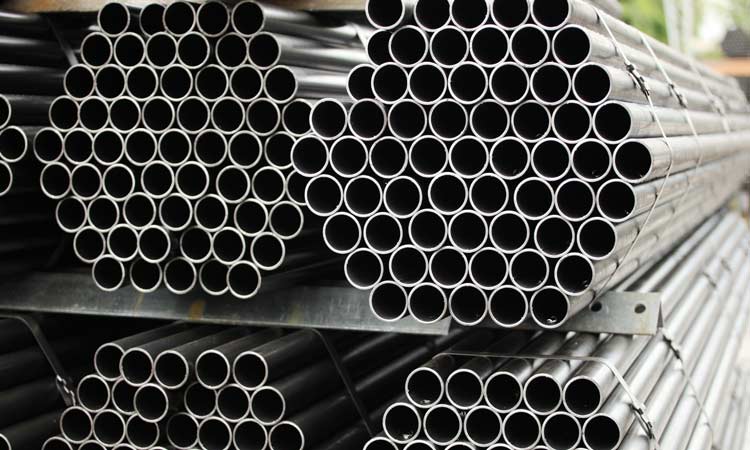

Bu-LOK Offers An Assorted Range Of Stainless Steel Pipes Build From Superior Quality Steel So That It Provides Resistance From Corrosion And Ensures High Durability. Our Stainless Steel Pipes Are Accessible In Various Grades As Per The Requirements Of The Clients. With Strong Manufacturing Capabilities And Technical Expertise, We Are Able To Cater High Tensile Stainless Steel Pipes For Various Industrial Applications.
| Austenitic Steel | 301, 304, 304H, 304L, 310, 310S, 316, 316L, 317, 317L, 321, 347 |
| Ferritic Steel | 409, 409M, 410s, 420, 430 |
| Martensitic Steel | 410, 416, 420, 431 |
| Wall Thickness | 1 mm – 25 mm |
| Form | Square, Rectangular, Round, Oval |
| Outer Dia (OD) | 6 mm – 1000 mm |
| Length | As Required |
| Finishes | 2B, BA & Designer Finishes |
| NPS | Outside Diameter | Nominal Wall Thickness | ||||||||
| Designator | in. | mm | Schedule 5S | Schedule 10S | Schedule 40S | Schedule 80S | ||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 1/8 | 0.41 | 10.29 | … | … | 0.049 | 1.24 | 0.068 | 1.73 | 0.095 | 2.41 |
| 1/4 | 0.54 | 13.72 | … | … | 0.065 | 1.65 | 0.088 | 2.24 | 0.119 | 3.02 |
| 3/8 | 0.68 | 17.15 | … | … | 0.065 | 1.65 | 0.091 | 2.31 | 0.126 | 3.2 |
| 1/2 | 0.84 | 21.34 | 0.065 | 1.65 | 0.083 | 2.11 | 0.109 | 2.77 | 0.147 | 3.73 |
| 3/4 | 4.05 | 26.67 | 0.065 | 1.65 | 0.083 | 2.11 | 0.113 | 2.87 | 0.154 | 3.91 |
| 1 | 1.32 | 33.4 | 0.065 | 1.65 | 0.109 | 2.77 | 0.133 | 3.38 | 0.179 | 4.55 |
| 1 1/4 | 1.66 | 42.16 | 0.065 | 1.65 | 0.109 | 2.77 | 0.14 | 3.56 | 0.191 | 4.85 |
| 1 1/2 | 1.90 | 48.26 | 0.065 | 1.65 | 0.109 | 2.77 | 0.145 | 3.68 | 0.2 | 5.08 |
| 2 | 2.38 | 60.33 | 0.065 | 1.65 | 0.109 | 2.77 | 0.154 | 3.91 | 0.218 | 5.54 |
| 2 1/2 | 2.88 | 73.03 | 0.083 | 2.11 | 0.12 | 3.05 | 0.203 | 5.16 | 0.276 | 7.01 |
| 3 | 3.50 | 88.9 | 0.083 | 2.11 | 0.12 | 3.05 | 0.1216 | 5.49 | 0.3 | 7.62 |
| 3 1/2 | 4.00 | 101.6 | 0.083 | 2.11 | 0.12 | 3.05 | 0.226 | 5.74 | 0.318 | 8.08 |
| 4 | 4.50 | 114.3 | 0.083 | 2.11 | 0.12 | 3.05 | 0.237 | 6.02 | 0.337 | 8.56 |
| 5 | 5.56 | 141.3 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.258 | 6.55 | 0.375 | 9.52 |
| 6 | 6.63 | 168.28 | 0.10*9 | 2.77 | 0.134 | 3.4 | 0.28 | 7.11 | 0.432 | 10.97 |
| 8 | 8.63 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.5 | 12.7 |
| 10 | 10.75 | 273.05 | 0.134 | 3.4 | 0.165 | 4.19 | 0.365 | 9.27 | 0.5 | 12.7 |
| 12 | 12.75 | 323.85 | 0.156 | 3.96 | 0.18 | 4.57 | 0.375 | 9.52 | 0.5 | 12.7 |
| 14 | 14.00 | 355.6 | 0.156 | 3.96 | 0.188 | 4.78 | … | … | … | … |
| 16 | 16.00 | 406.4 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 18 | 18.00 | 457.2 | 0.165 | 4.19 | 0.188 | 4.78 | … | … | … | … |
| 20 | 20.00 | 508 | 0.188 | 4.78 | 0.188 | 4.78 | … | … | … | … |
| 22 | 22.00 | 558.8 | 0.188 | 4.78 | 0.218 | 5.54 | … | … | … | … |
| 24 | 24.00 | 609.6 | 0.218 | 5.54 | 0.25 | 6.35 | … | … | … | … |
| 30 | 30.00 | 762 | 0.25 | 6.35 | 0.312 | 7.92 | … | … | … | … |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At Bu-LOK , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
