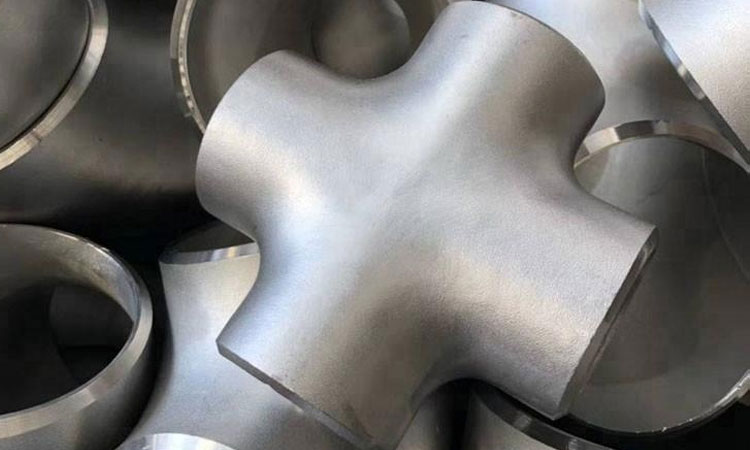

Pipe Cross


Bu-LOK is a prominent manufacturer of stainless steel cross, carbon steel cross and alloy steel cross fittings, commonly known as a 4-way pipe fitting. Cross tee usually generates high stress on pipe as temperature changes, because they are at the center of four connection points. In comparison, a tee is steadier than a cross, as a tee behaves like a three-legged stool, while a cross behaves like a four-legged stool.

We can supply pipe cross in two types namely, straight cross and reducing cross in a complete range of shapes and dimensions. We are a leading supplier of stainless steel cross tee and alloy steel cross tee to domestic customers and international customers in various industries such as oil and gas, petrochemical, power generation, pharmaceuticals, paper
Manufacturing, natural gas industry and chemical plants. Cross is used in many applications, as a junction for intersecting pipes.

Buttweld Pipe Cross Production Range

Outside Diameter: Seamless Pipe Tee ( 1/2″~24″), ERW / Welded / Fabricated Pipe Tee (1/2″~48″)
Types: Seamless, Welded, Equal Cross, Reducing Cross
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards– Pipe Cross

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Cross Material Grades

Stainless Steel Pipe Cross ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe Cross ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cross ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cross ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cross ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe Cross ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Bu-LOK, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
