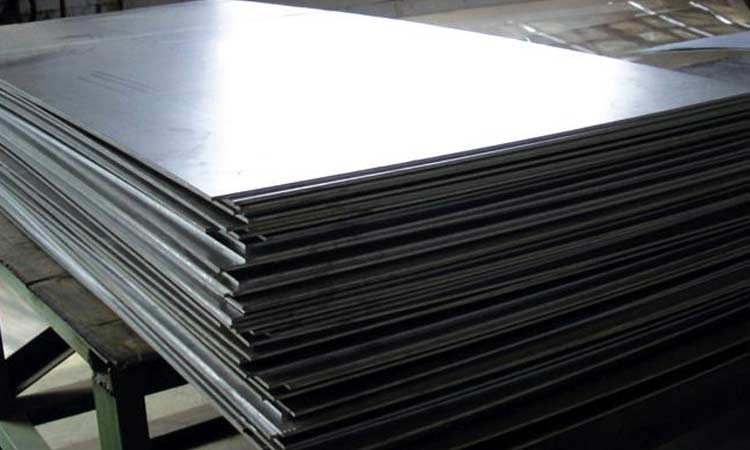

Plate and Sheet


Depending on producing method, plate and sheet are classified cold rolled and hot rolled type, classified as feature and application, there are nitric acid resistant plate and sheet, sulphuric acid resistant plate and sheet, pitting resistant plate and sheet, stress corrosion resistant plate and sheet and high strength plate and sheet.


Sheet Standards

ASTM A240 – Chromium and Chromium Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications

ASTM A480 – General Requirements for Flat Rolled Stainless and Heat Resisting Steel Plate, Sheet, and Strip

ASTM A666 – Annealed or Cold Worked Austenitic Stainless Steel Sheet, Strip, Plate, and Flat Bar

EN 10088-2 – General purpose plate, sheet, strip

JIS G4305 – Cold rolled stainless steel plate, sheet, strip

Thickness chart

Thickness (mm) Tolerances for the thickness and widths given ,
+/-(mm)
Width ≤ 152 152 < Width ≤ 305 305 < Width ≤ 610
0.05 – 0.13 excl 10% 10% 10%
0.13 – 0.25 incl 0.015 0.020 0.025
over 0.25 – 0.3 incl 0.025 0.025 0.025
over 0.3 – 0.4 incl 0.025 0.04 0.04
over 0.4 – 0.5 incl 0.025 0.04 0.04
over 0.5 – 0.74 incl 0.04 0.04 0.05
over 0.74 – 0.89 incl 0.04 0.05 0.05
over 0.89 – 1.27 incl 0.06 0.07 0.07
over 1.27 – 1.75 incl 0.07 0.07 0.07
over 1.75 – 2.54 incl 0.07 0.07 0.10
over 2.54 – 2.98 incl 0.010 0.10 0.12
over 2.98 – 4.09 incl 0.12 0.12 0.12
over 4.09 – 4.76 incl 0.12 0.12 0.15

Sizes of Sheet and Plate

Standard width: 1000 mm, 1219 mm, 1500 mm, 2000 mm, non-standard width is slitted and cut in narrow width, width from 6 mm to 3048 mm.

Thickness range from 0.3 mm to 150 mm, there are varieties of thickness, thin thick sheet (0.2 mm – 4 mm), thick thickness plate(4 mm – 20 mm), medium thickness plate (20 mm – 60 mm) and heavy thickness plate (60 mm – 115 mm).

Stainless steel plate & sheet gauge range from 1 to 30, size range thickness from 0.32 to 7.15 in mm, the higher the gauge, the thinner the material.


Plate & Sheet Surface Finishes

Stainless steel plate & sheet have various finishes condition to suit application, there are main surface finishes below, these finishes can be obtained by cold rolling or hot rolling producing method.

  • NO.1 – Hot rolled, annealed, and descaled
  • 2D – Cold rolled, dull finish
  • 2B – The general-purpose, cold rolled, smooth finish
  • BA – Bright, cold rolled, highly reflective finish
  • NO.3 – Intermediate polished finish
  • NO.4 (BRUSHED)– General-purpose ground polished finish produced from 2B finish
  • NO.8 (MIRRORED) – Highly reflective ‘mirror’ finish produced from 2B finish

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Bu-LOK , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
