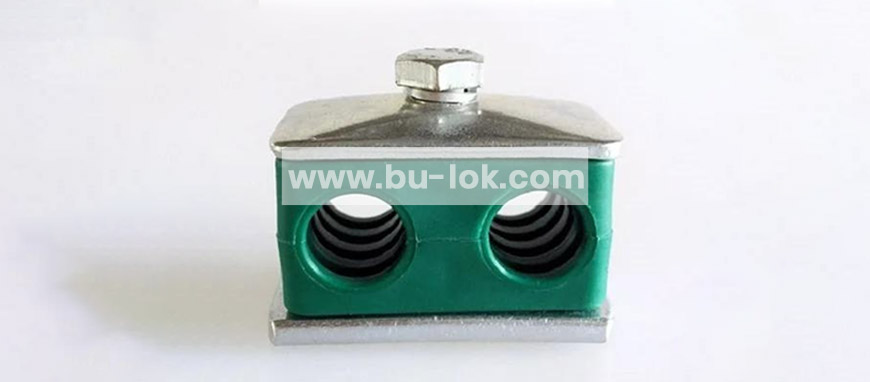

A double hole tube clamp is a device used to hold two tubes together in a fixed position. It is typically made of metal, such as steel or aluminum, and consists of two halves that are joined together with screws or bolts. Each half of the clamp has two holes that are sized to fit over the tubes that are being joined.
Once the tubes are inserted into the clamp, the screws or bolts are tightened to secure the clamp in place. The double hole design of the clamp allows for a more secure connection between the tubes, as the two holes provide additional points of contact.
TDouble hole tube clamps are commonly used in a variety of applications, including in automotive, plumbing, and construction projects. They are often used to join pipes or tubes that need to be held in a fixed position, such as in a plumbing or HVAC system.
BOverall, a double hole tube clamp is a simple yet effective device that is used to connect two tubes together in a secure and stable manner.
|
Brand |
BU-LOK |
|
Equivalent To |
STAUFF, SWAGELOK, PARKER |
|
Type |
Green Plastic Double Holes Adjustable Pipe Clamp |
|
Component |
Clamp body(2 halves),bolts,top & bottom plate |
|
Size |
1 /4’’ to 2 ½’’ – 6 mm to 76.1 mm |
|
Surface |
Galvanized,etch polish |
|
Locking Screw |
M6 X25 TO M6 X 100 MM LONG |
|
Material |
Jaws – Polypropylene, Aluminum, Polyamide Top & Bottom Plate and Bolt – Steel or Stainless Steel |
|
Standard |
ISO9001,DIN3015 |
|
Certification |
ISO 9001:2008 |
|
Industry Focus |
Hydraulics, Industrial, vehicles, ships, electric power |
