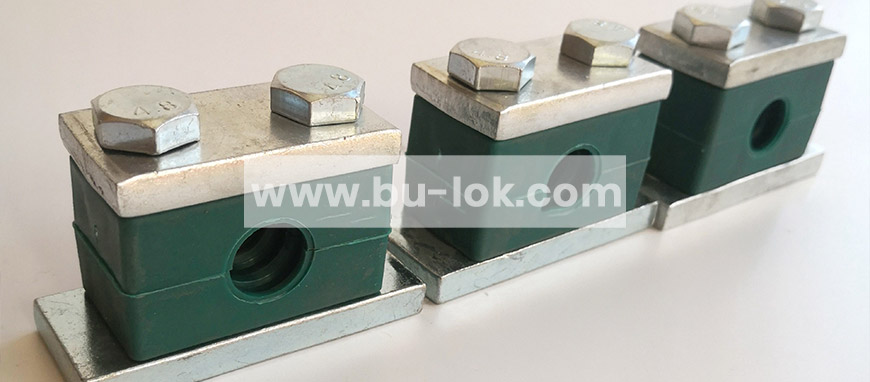

Polypropylene Pipe Clamp

What are Polypropylene Pipe Clamps?

Polypropylene pipe clamps are a type of fastening device used to secure polypropylene pipes in place. These clamps are made from high-quality polypropylene material, which is a thermoplastic polymer that has excellent chemical resistance, durability, and thermal stability.

Polypropylene pipe clamps are designed to hold pipes firmly in place and prevent them from moving or shifting due to pressure, temperature changes, or other external factors. They come in a variety of sizes and shapes to fit different pipe diameters and configurations.

The clamps consist of two main components: the clamp body and the locking mechanism. The clamp body is usually a U-shaped channel that wraps around the pipe, while the locking mechanism is a bolt or screw that tightens the clamp around the pipe.

Polypropylene pipe clamps are commonly used in a wide range of applications, including plumbing, irrigation, HVAC, and industrial piping systems. They are easy to install and require no special tools or equipment.

Some of the key benefits of using polypropylene pipe clamps include their corrosion resistance, light weight, and low cost. They are also resistant to UV radiation, making them ideal for outdoor applications.

Sizes and Measurements of Polypropylene Pipe Clamp

ONE SET = ONE TOP PLATE + ONE BOTTOM PLATE + 2 HEX BOLTS + ONE PAIRS OF PP JAWS
DIN	OUR PART CODE	PIPE OD
GROUP		Dia - d	a2	a3	a1	b1	G	S	h1	h2	HEX BOLT SIZE
	TU-LOK	IN MM	IN MM	IN MM	IN MM	IN MM	IN MM	IN MM	IN MM	IN MM	SIZE x LENGTH

1	BU-LOK PCL 6 MM	6	43	34	20	30	0.4	3	27	33	M6 x 30 MM
	BU-LOK PCL 6.4 MM (1/4")	6.4
	BU-LOK PCL 8 MM	8
	BU-LOK PCL 9.5 MM (3/8")	9.5
	BU-LOK PCL 10 MM	10
	BU-LOK PCL 12 MM	12



Group 2

2	BU-LOK PCL 12.7 MM (1/2")	12.7	48	42	26	30	0.6	3	32-33	38	M6 x 37 MM
	BU-LOK PCL 13.7 MM	13.7
	BU-LOK PCL 14 MM (9/16")	14
	BU-LOK PCL 15 MM	15
	BU-LOK PCL 16 MM (5/8")	16
	BU-LOK PCL 17.2 MM	17.2
	BU-LOK PCL 18 MM	18

Group 3

3	BU-LOK PCL 19 MM (3/4")	19.05	56	50	33	30	0.6	3	36	42	M6 x 40 MM
	BU-LOK PCL 20 MM	20
	BU-LOK PCL 21.3 MM	21.3
	BU-LOK PCL 22 MM	22
	BU-LOK PCL 25 MM (1")	25.4

Group 4

4	BU-LOK PCL 26.9 MM	26.9	62	60	40	30	0.6	3	42	48	M6 x 45 MM
	BU-LOK PCL 28 MM	28
	BU-LOK PCL 30 MM	30



Group 5

5	BU-LOK PCL 32 MM (11/4")	32	74	70	52	30	0.8	3	58	64	M6 x 60 MM
	BU-LOK PCL 33.7 MM	33.7
	BU-LOK PCL 35 MM	35
	BU-LOK PCL 38 MM (11/2")	38
	BU-LOK PCL 40 MM	40
	BU-LOK PCL 42 MM	42

Group 6

6	BU-LOK PCL 44.5 MM	44.5	88	86	66	30	0.8	3	66	72	M6 x 70 MM
	BU-LOK PCL 48.3 MM	48.3
	BU-LOK PCL 50.8 MM (2")	50.8
	BU-LOK PCL 53 MM	53



Group 7

7	BU-LOK PCL 60.3 MM	60.3	122	118	94	30	0.8	3	93	99 or 103	M6 x 100 MM
	BU-LOK PCL 63.5 MM	63.5
	BU-LOK PCL 76.1 MM	76.1



Basic Features of Polypropylene Tube Clamp

1. Long Service Life
2. Reliability
3. Corrosion Resistance

Size Standard and Specification of Polypropylene Tube Clamp

1. Brand: BU-LOK
2. Equivalent to: Stauff, Swagelok, Parker
3. Material: Usually SS304, SS316L is available for Customization.
4. Size: 1/4 to 2 ½ - 6mm to 76.1mm
5. Standard: 3A, DIN, SMS, ISO, RJT, DS, BS, BSP, IDF
6. Temperature: -10 to 120 centigrade
7. Pressure: 58.8-98 pa
8. Process: Investment casting+mirror polishing+assembling

Different Way of Packing PP Tube Clamp

Here are the ways we pack our products in:

1. Wooden Box
2. Wooden Crates
3. Carton Boxes
4. Shrink-Wrapped
5. Wooden Pallets
