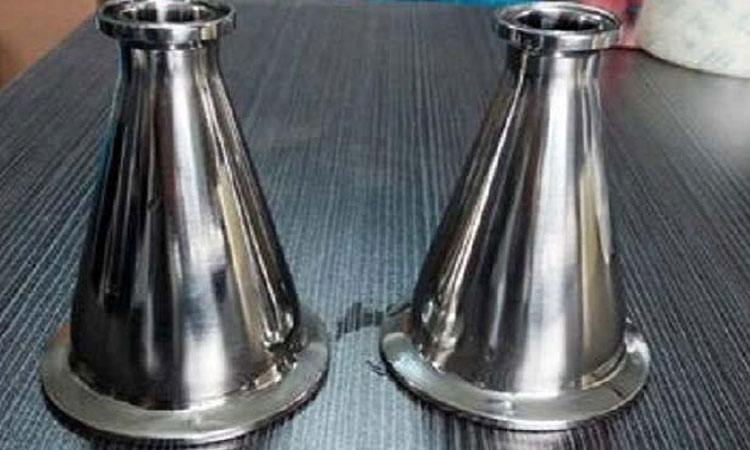

SS Dairy Reducer


BU-Lok Valves & Fitting India Pvt Ltd, specializes in manufacturing top-quality Concentric Reducers meticulously crafted from 316L stainless steel. These reducers undergo a rigorous production process, starting from 3.1b certified 316L solid bars, ensuring a superb surface finish with a standard value of 0.8Ra. However, we offer the flexibility of 0.6Ra, 0.4Ra, and electro-polishing options upon request.

Our Concentric Reducers come standard with ferrule ends, facilitating easy clamping onto connecting pipe work and hassle-free removal for cleaning purposes. They adhere to BS4825, ISO1127, and BPE dimensions, with the possibility of manufacturing DN32676, SMS, and SWG mating ends upon special request. We also provide bespoke options to suit varying face-to-face lengths and exotic materials as per customer specifications.

These reducers are engineered to maintain a right-angled configuration for smooth fluid flow, making them ideal for conveying liquids efficiently. Furthermore, our SS 316L Dairy Reducers are hygienic, ensuring safe conveyance of substances like milk without the risk of contamination from harmful pathogens.

What is a Concentric Reducer?

A Concentric Reducer is a type of pipe fitting that is used to connect pipes or tubes of different diameters in a straight line. It is called "concentric" because the center of the reducer aligns with the center of both pipes, resulting in a smooth and even transition between the two different pipe sizes. Concentric reducers are typically used when there is a need to maintain fluid or gas flow and pressure while changing the pipe diameter.

Concentric reducers are typically made from materials like stainless steel, carbon steel, or other alloys, depending on the specific application and the type of fluid or gas being transported. They are available in various sizes and are designed to meet industry standards and specifications.

What is the purpose of a Concentric Reducer?

  1. Diameter Transition: Concentric Reducers are primarily used to connect pipes or tubes of different diameters. They allow for the seamless transition from a larger pipe to a smaller one or vice versa while ensuring that the centerline of both pipes remains aligned. This smooth transition minimizes turbulence in the flow of fluids, reducing the risk of pressure drop and erosion.
  1. Flow Control: Reducers help control the flow rate and pressure of fluids within a piping system. By reducing or increasing the pipe diameter gradually, they prevent abrupt changes in flow velocity, which can lead to turbulence, vibration, and damage to the system.
  1. Space Optimization: In some cases, Concentric Reducers are used to save space within a piping system. By reducing the pipe size, they can help fit the piping system into a confined space or around obstacles.
  1. Avoidance of Cavitation: Cavitation is the formation of vapor bubbles in a liquid when it passes through a region of low pressure and then returns to high pressure. Concentric Reducers can help prevent cavitation by maintaining a gradual change in fluid velocity and pressure.
  1. Compliance with Standards: In many industries, such as oil and gas, petrochemicals, and water treatment, the use of Concentric Reducers is essential to meet industry standards and regulatory requirements for safe and efficient fluid transport.
  1. Versatile Applications: Concentric Reducers find applications in various industries, including chemical processing, oil and gas, water treatment, HVAC (heating, ventilation, and air conditioning), and many others. Their versatility makes them a fundamental component in different piping systems where diameter transitions are required while maintaining flow integrity.

What is the specification of a Concentric Reducer?

Thickness

1.0 mm to 5 mm, 16 SWG, 18SWG, 20 SWG, 12 SWG, 14 SWG,

Sizes

DN 10 – DN 100, 1/2”-4”

Finish

Mechanical Polish, Electro Polished, 320 Grit, 500 Grit, 400 Grit, Non Electro Polished, 800 Grit

Outside Diameter

1/4” N.B. – 8” N.B, 1/4” O.D. – 8” O.D.

Grade

SS 304, SS 304L, SS 316 , SS 316L

Standards

IDF / SMS / DIN / TRICLOVER / BSP / NPT

Conclusion

As an approved manufacturer by Saudi Aramco, Bu-LOK offers a wide distribution network across key locations in India, including Delhi, Bangalore, Surat (Gujarat), Hyderabad, Pune (Maharashtra), and Chennai in Tamil Nadu. We stock Dairy Concentric Reducers, SS 304 Dairy Reducers, 304L Dairy Eccentric Reducers, and other Dairy Reducer variants at highly competitive prices, thanks to our efficient manufacturing processes. Our products cater to international clients, with distributors in Morocco, Netherlands, Ghana, South Korea, Mexico, Australia, Bolivia, Belgium, Malaysia, Afghanistan, Israel, Poland, Czech Republic, Chile, Colombia, Taiwan, Singapore, Canada, Finland, and more.

For inquiries or to purchase Dairy Concentric Reducers, Stainless Steel 304 Dairy Reducers, and other stainless steel fittings at the best prices in India, please contact us. We can provide you with the latest price list and dimensions for Dairy Reducers. Take advantage of our ongoing offer for Stainless Steel Dairy Reducers at a 30% discounted rate. You can also request a free sample of our SS 304 Dairy Reducer to evaluate our product's quality.

Choose BU-Lok Valves & Fitting India Pvt Ltd for premium stainless steel fittings and reducers, where quality and customer satisfaction are our top priorities.
