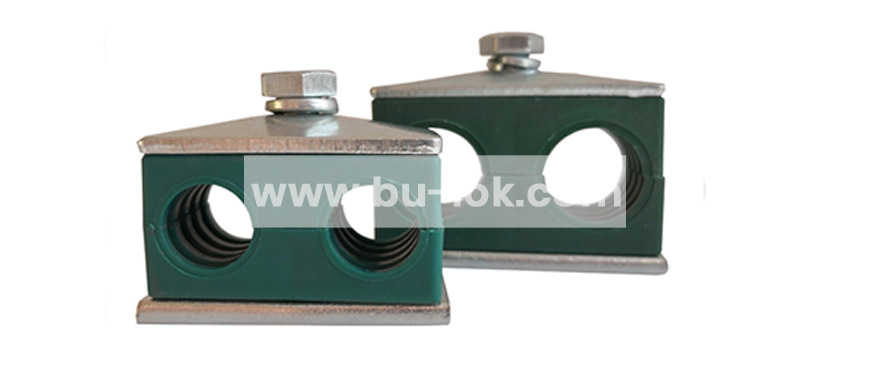

A Twin Tube Clamp is a device used to secure two tubes or pipes together in a parallel orientation. It is a type of clamp that consists of two halves that are joined together with bolts or screws. Each half of the clamp has a circular opening that matches the diameter of the tube or pipe it is designed to hold.
The Twin Tube Clamp is commonly used in plumbing, construction, and industrial applications. It is designed to provide a secure and stable connection between two tubes or pipes, preventing them from moving or shifting. The clamp is typically made of metal, such as steel or aluminum, and is available in various sizes to accommodate different tube diameters.
One of the key features of the Twin Tube Clamp is its ability to provide a tight and secure grip on the tubes or pipes without damaging them. The clamp evenly distributes pressure along the length of the tubes, preventing them from denting, cracking, or bending. This is important in applications where the tubes or pipes are under pressure, such as in hydraulic systems.
|
Brand |
BU-LOK |
|
Equivalent To |
STAUFF, SWAGELOK, PARKER |
|
Minimum Order Quantity |
50 Bag |
|
Color |
Green |
|
Locking Screw |
M6 X25 TO M6 X 100 MM LONG |
|
Material |
Stainless Steel |
|
Size Range |
1 /4’’ to 2 ½’’ – 6 mm to 76.1 mm |
|
Structure |
Hydraulic |
|
PRODUCT |
PIPE CLAMPS |
|
STANDARD |
ACCORDING TO DIN 3015br>BU-LOK Website: Twin Tube Clamp - Google DocsDIN 3015-PART2DIN 3015-PART3 |
|
TWIN SERIES |
FOR PIPE OD -6 MM TO 42 MM |
|
ACCESSORIES |
CLAMPS WITH RUBBER INSERT CLAMPS WITH MOUNTAIN RAILS CLAMPS WITH STACKING LAYERS |
|
CONSTRUCTION OF CLAMPS BODY |
BOTH CLAMPS HALVES ARE IDENTICAL |
|
TW |
Complete Clamp for Weld Mounting [TWP] |
|
R0T |
Complete Clamp for Mounting to RAL-0 |
|
R1T/R4T |
Complete Clamp for mounting to RAL-1 |
|
UT |
Complete Clamp for mounting to Strut Channel [UCN] |
|
TWSK |
Stacking Kit[SAF + STB] |
|
Omit |
Electro-Zinc Dichromate Plating RCN-0 rail nuts are still supplied as untreated carbon steel. Zinc plating available for these parts on request. |
|
T |
AISI 304 Stainless Steel (A2 - 1.4301/1.4305) |
|
X |
AISI 316/316Ti Stainless Steel (A4 - 1.4401/1.4571) |
|
C |
Untreated Carbon Steel |
